Description

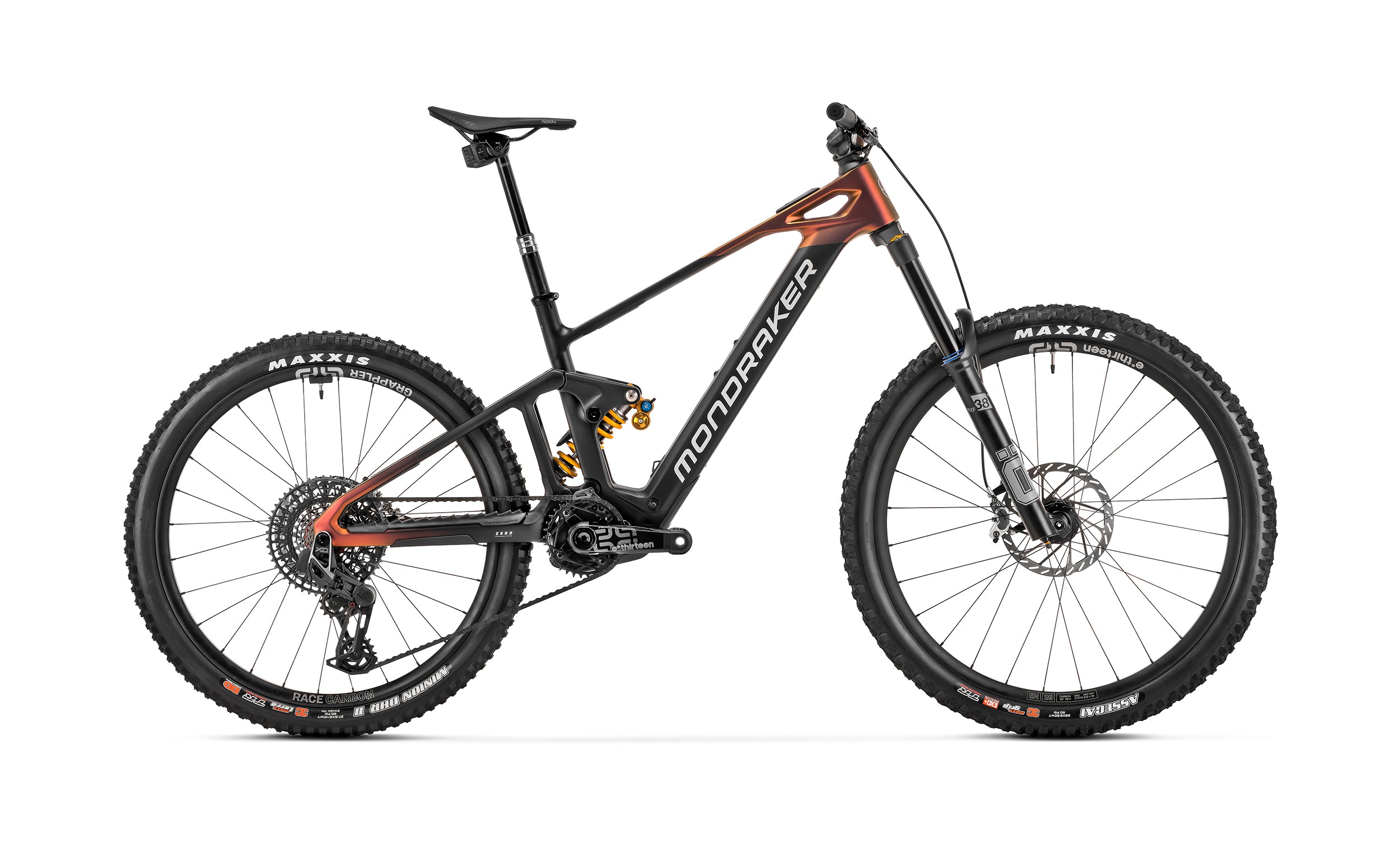

mountainbike mars Mondraker Dune XR 2025 Electric Mountain BikeTake your riding to the next level with the Mondraker Dune XR Electric Mountain Bike in striking Mars. Engineered for pure trail dominance, this high performance e MTB combines cutting edge carbon construction, elite suspension, and Boschs latest motor system to power your adventure on any terrain. Unrivaled Performance & Agility Designed around Mondrakers Forward Geometry, the Stealth Air full carbon frame ensures an ultra light, stiff, and
Take your riding to the next level with the Mondraker Dune XR Electric Mountain Bike in striking Mars. Engineered for pure trail dominance, this high-performance e-MTB combines cutting-edge carbon construction, elite suspension, and Bosch’s latest motor system to power your adventure on any terrain.
Unrivaled Performance & Agility
Designed around Mondraker’s Forward Geometry, the Stealth Air full carbon frame ensures an ultra-light, stiff, and responsive ride. With an aggressive 165mm rear travel and a 180mm Öhlins RXF 38 M.2 fork, the Dune XR is built to handle the roughest trails with confidence and control.
Next-Gen Bosch Electric Power
At the heart of this beast is the Bosch Performance Line SX motor, delivering smooth, natural power assist up to 25km/h. Paired with a Bosch Compact Powertube 400Wh battery, you get lightweight efficiency and extended ride time, ensuring you can conquer climbs and shred descents with ease.
Race-Ready Components for Maximum Control
- Öhlins TTX22M.2 rear shock with climb mode and adjustable compression/rebound
- SRAM X0 Eagle AXS T-Type 12-speed drivetrain for seamless shifting
- SRAM Code Ultimate Stealth brakes with oversized 200mm rotors for powerful stopping
- e*thirteen Grappler Carbon wheels with a mullet setup (29" front / 27.5" rear) for ultimate agility
- Maxxis Assegai & Minion DHR II tubeless-ready tires for superior grip and durability
Premium Ride Feel & Tech-Forward Design
The Dune XR is packed with rider-focused features, including an integrated Bosch Mini Remote & System Controller, a RockShox Reverb Stealth AXS dropper post, and internal cable routing for a clean look. Sealed Enduro Max bearings and oversized axles provide unmatched durability for long-term performance.
The Ultimate E-MTB for Riders Who Demand More
Whether you’re charging downhill, crushing technical climbs, or sending it on big lines, the Mondraker Dune XR is built for maximum speed, agility, and fun.
Available now at The Rolling Fix, Liverpool – Experience the future of e-MTB performance today!
Specifications
Frame: Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock: Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork: Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle: Fizik Terra Aidon Slim X5
Front brake: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims: e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''''5 rear
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire: Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset: e*Thirteen TRS Race carbon ebike, All sizes: 160mm
Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain: Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur: Sram X0 Eagle AXS T-Type,12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Cassette: Sram XS-1295, 10-52T, T-Type, 12s
Weight: 19,5 kg
Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery: Bosch Compact Powertube 400Wh
